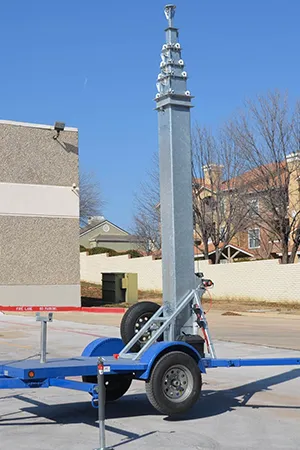

A Cell On Wheels (COW) system is made up of several key components that work together to ensure safe operation, easy transport, and fast deployment in the field.

• Truck-Mounted Chassis with Wheels
  The wheeled truck frame supports the entire telescoping tower system and allows it to be transported easily from one site to another.

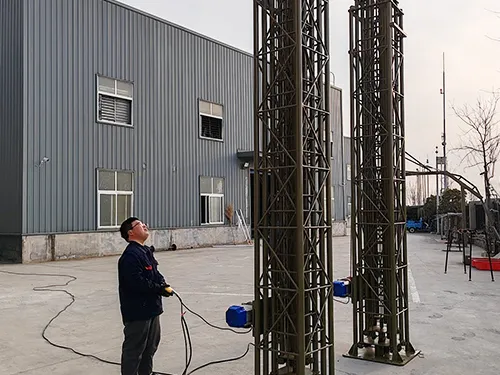

• Telescoping Mast

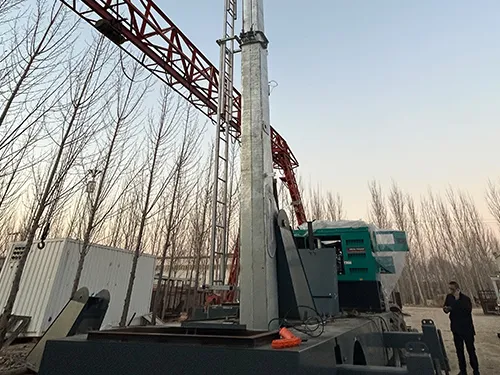

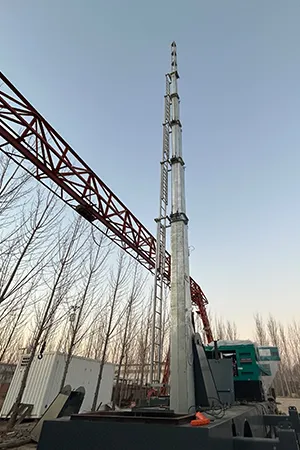

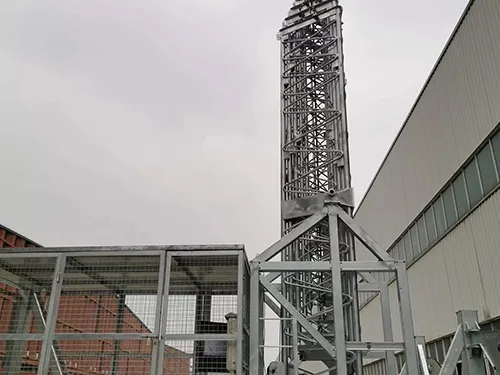

  The mast is designed for vehicle transport and can be raised to working heights of 25 or 30 meters once on site, depending on project needs.

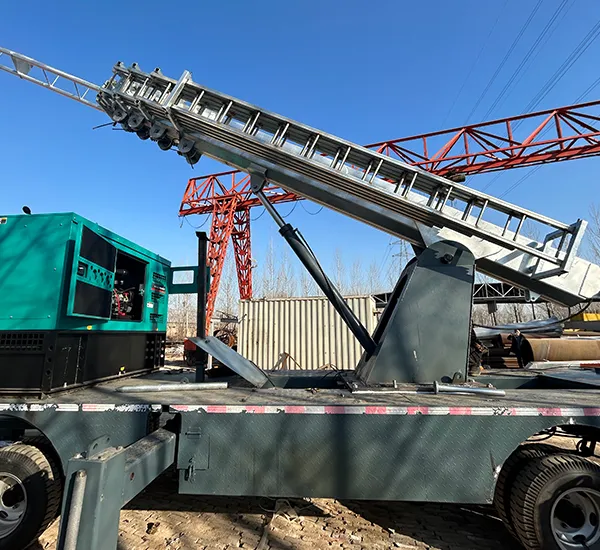

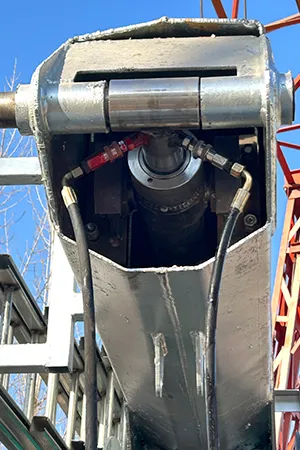

• Lifting Drive and Support System
  The tower is raised and lowered using a hydraulic lifting system that can be operated either by remote control or directly from the vehicle. This makes it easier and safer for operators to handle the mast in different working situations.
• Guy Wire System
  Once the mast is fully extended, guy wires are attached to hold the tower firmly in place and keep it stable while it is in use.
• Lightning Protection and Grounding System
  If lightning occurs, the grounding system redirects the current into the ground so the mobile base station and the communication equipment remain safe.

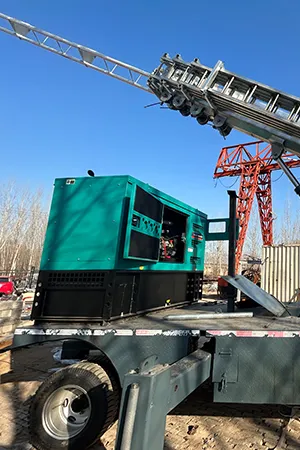

• Optional Power Solutions
  Supports various power supply options, including mains power, diesel generators, solar power, and wind power.

• Technical Specifications
• Applicable Standards

Portable telescoping communication towers are easy to move and can be installed on site in a very short time, which is suitable for temporary locations, changing project sites, and operations that need communication coverage without long installation work.

COW systems are commonly used as part of mobile communication base stations, providing stable signal support while also offering built-in lightning protection for safer operation in the field.

Equipped with a hydraulic lifting and support system designed for rapid installation and quick deployment, the system ensures stable lifting, precise positioning, and simple operation, enabling the communication tower to be raised and secured safely and efficiently.

Strong adaptability allows the COW system to be used for emergency communications, temporary network coverage, and concealed communication tasks where fixed towers are not suitable or available.

Manufacturing Process

• Laser Cutting
• CNC Punching and Shearing
• Hot-Dip Galvanizing and Surface Protection

Laser Cutting
Laser cutting is used to shape the steel components through focused beam cutting and assisted gas removal. The process offers fast cutting speed and high dimensional accuracy (up to ±0.05 mm), while keeping heat impact to a minimum. This reduces the risk of deformation and results in clean, well-defined edges.

CNC Punching and Shearing
Steel angles are processed through CNC-controlled punching and shearing lines. Automatic feeding, positioning, punching, and cutting are all integrated into the process, keeping production running smoothly and efficiently. Precise CNC positioning keeps quality consistent, even when working with more complex parts.

Hot-Dip Galvanizing and Surface Protection
The tower is protected with hot-dip galvanizing as the main anti-corrosion treatment, along with an extra plastic coating for added protection. The zinc layer protects the steel from rust and adds strength, while the coating gives extra insulation and surface protection. This combined treatment allows the tower to maintain reliable performance for over 20 years and adapt well to harsh environments such as high and low temperatures, coastal areas, and mountainous regions.
