Angular communication towers are manufactured with angle steel and are mainly used to hold antennas for mobile networks, radio signals, and other wireless communication requirements. Their open lattice structure keeps the tower stable while avoiding unnecessary use of material, which helps control overall construction costs. For this reason, they are often installed in suburban and rural areas where steady and reliable signal coverage is needed.

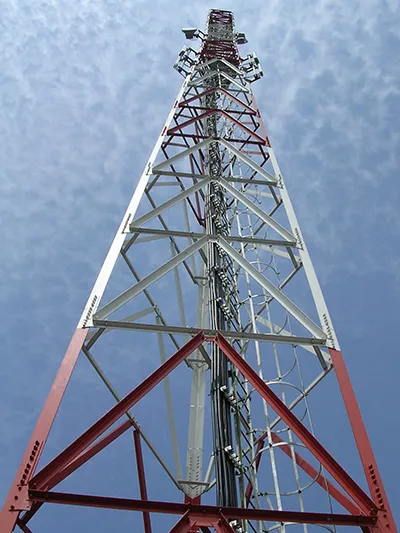

    1. 3-Legged Angular Steel Communication Tower
    2. 3-Legged Angular Steel Communication Tower
      Design Standards: ANSI/TIA-222-G/H/F; EN 1991-1-4; EN 1993-3-1
      Quality Certification: ISO 9001: 2015; COC; Third Party Inspection Report (SGS, BV)
      Bolts & Fasteners: Grades 8.8 / 6.8 / 4.8; A325; DIN 7990, DIN 931, DIN 933; ISO 4032, ISO 4034
      Main Material: Structural angle steel
      Height Range: 5–80 m, customizable to project needs
      Design Wind Speed: Up to 300 km/h, adjusted according to site conditions
      Surface Treatment: Hot-dip galvanized; Painting
      Galvanizing Standard: ASTM A123 / ISO 1461
      Expected Service Life: More than 20 years
      View Details

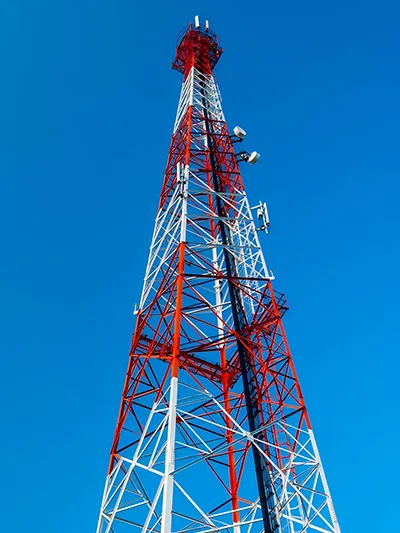

    1. 4-Legged Angular Steel Communication Tower
    2. 4-Legged Angular Steel Communication Tower
      Design Standards: ANSI/TIA-222-G/H/F; EN 1991-1-4; EN 1993-3-1
      Quality Certification: ISO 9001: 2015; COC; Third Party Inspection Report (SGS,BV)
      Bolts & Fasteners: Grades 8.8 / 6.8 / 4.8; ASTM A325; DIN 7990, DIN 931, DIN 933; ISO 4032, ISO 4034
      Main Material: Structural steel angles
      Height Range: 5–110 m, customizable to project needs
      Design Wind Speed: Up to 300 km/h, adjusted according to site conditions
      Surface Treatment: Hot-dip galvanized; Painting
      Galvanizing Standard: ASTM A123 / ISO 1461
      Expected Service Life: More than 20 years
      View Details
Project Application Examples

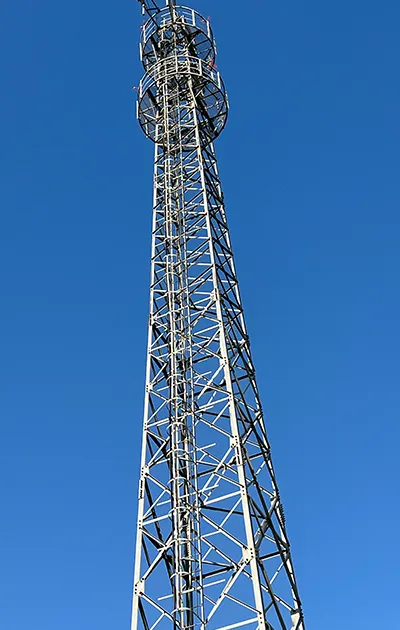

  • 50m 4-Legged Angular Steel Tower50m 4-Legged Angular Steel Tower

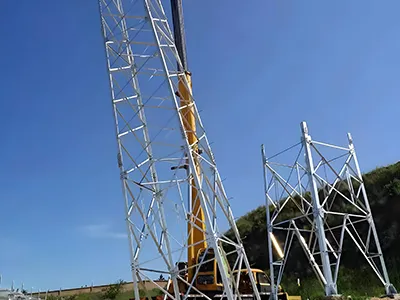

  • 40m 4-Legged Angular Steel Tower40m 4-Legged Angular Steel Tower

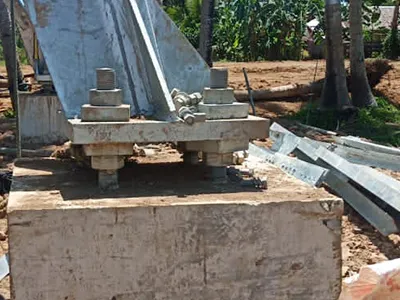

  • 60m 4-Legged Angular Steel Tower60m 4-Legged Angular Steel Tower

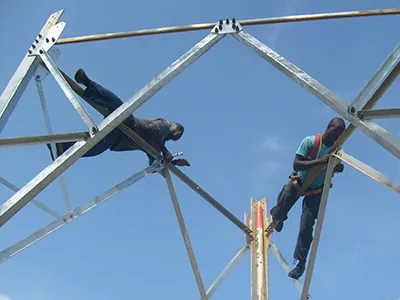

  • 50m 3-Legged Angular Steel Tower50m 3-Legged Angular Steel Tower

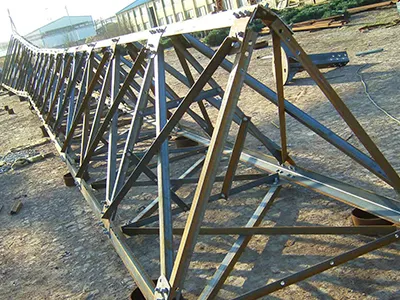

  • 60m 3-Legged Angular Steel Tower60m 3-Legged Angular Steel Tower
Steel Tower Design & Manufacturing
60,000 tons annual output capacity
Steel Tower Design & Manufacturing

With family experience dating back to 1984, Jiayao delivers steel tower solutions built with high-grade materials, heavy-duty galvanizing, and designs compliant with ANSI/TIA and Eurocode standards. Our steel structures are engineered for high wind resistance and easy installation, ensuring reliable performance across diverse environments.

Contact Us
FAQs

Angular communication towers can support a wide range of antennas used for mobile networks, data transmission, broadcasting, and wireless communication. The most common options include the following:

Antenna Type Description
Panel Antennas (Sector Antennas) Commonly used for 4G/5G and GSM networks. Typical sizes include 2.52 × 0.265 × 0.13 m and 1.31 × 0.32 × 0.11 m.
Parabolic Dish Antennas Used mainly for microwave links. Common diameters include 0.6 m, 0.9 m, 1.2 m, 1.6 m, 1.8 m, and 2.4 m.
RRU (Remote Radio Unit) Wireless radio units typically around 0.45 × 0.32 × 0.25 m, installed close to the antennas to reduce signal loss.
WiFi Antennas Includes grid antennas, parabolic directional antennas, Yagi antennas, and omnidirectional antennas.
Other Antennas VHF/UHF dual-band antennas and frequency-tuning antennas for specialized communication needs.

For sites in mountains or uneven terrain, ground stability is the first priority. A flat and firm foundation helps ensure long-term safety. Angular towers are well suited for this type of environment because of their high structural rigidity and modular design, which also makes transport and on-site assembly easier. Proper site selection helps protect both the tower and the communication equipment mounted on it.
