• Main Components

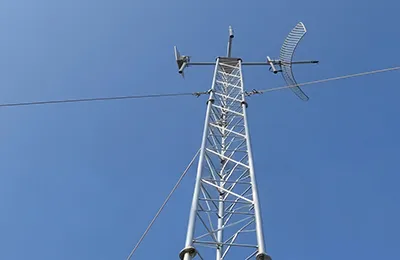

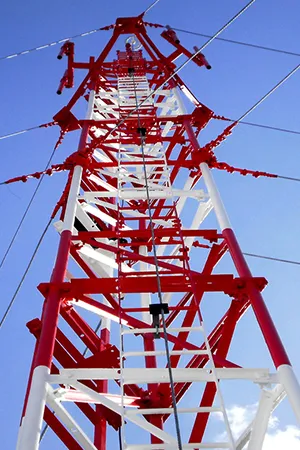

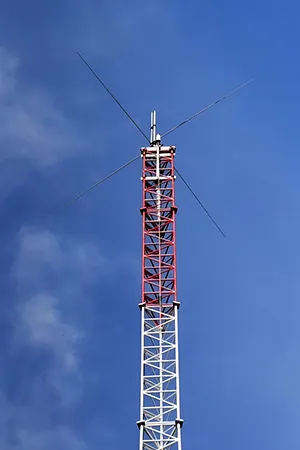

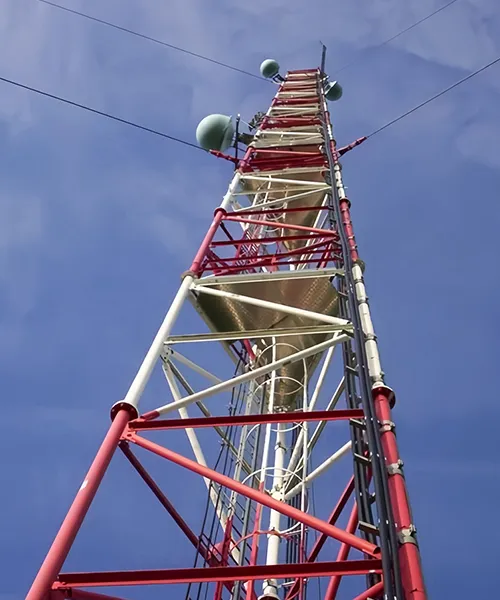

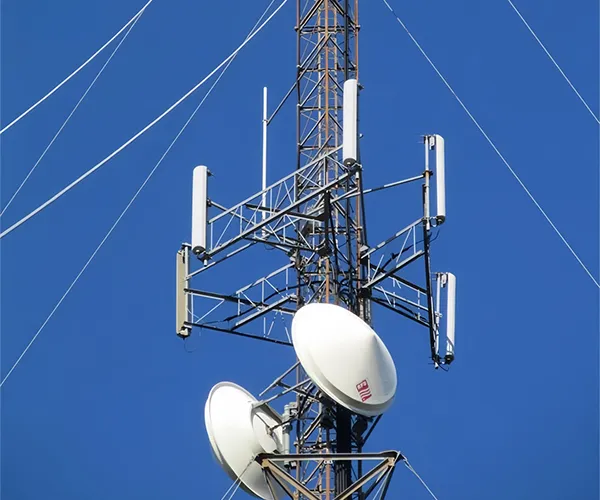

  Guyed communication towers have a structure made up of the tower head, main shaft, and guy wires. The tower head and main shaft are usually built with angle steel or steel pipes assembled into a spatial truss structure. The guy wires are typically made of high-strength steel strands.
• Structural Stability
  The guy wires take on part of the forces acting on the telecom tower, which helps it stay stable while supporting both vertical and tension loads. This design also improves material efficiency by making better use of the steel.

Typical Installation Environments
Guyed towers are usually installed in rural or mountainous areas where visual impact is less of a concern and land costs are lower. A flat area with firm ground is usually chosen because it makes the installation process simpler and helps avoid future stability issues.

• Technical Specifications
• Applicable Standards

Part of the load in guyed towers is carried by the guy wires, so the main structure does not need to be as heavy as a self-supporting tower. Since the structure uses lighter steel sections, less material is needed, which helps keep construction costs at a more reasonable level.

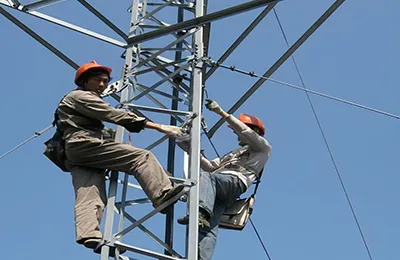

The structure of a guyed tower is simple, which makes the installation process easier to handle on site. With fewer complicated assembly steps, construction can be completed in a shorter time, helping reduce installation time and labor costs.

Correctly installed guy wires help keep the tower steady when it is exposed to wind and other external forces. On soft or unstable ground, the anchoring systems help spread the weight over a wider area instead of placing all the stress in one point. Uneven ground movement is reduced, helping the structure remain safe and stable over long-term operation.

Manufacturing Process

• Laser Cutting
• CNC Punching and Shearing
• Hot-Dip Galvanizing and Surface Protection

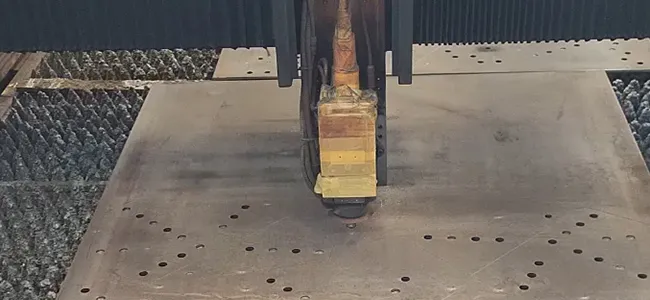

Laser Cutting
Laser cutting is used to shape the steel components through focused beam cutting and assisted gas removal. The process offers fast cutting speed and high dimensional accuracy (up to ±0.05 mm), while keeping heat impact to a minimum. This reduces the risk of deformation and results in clean, well-defined edges.

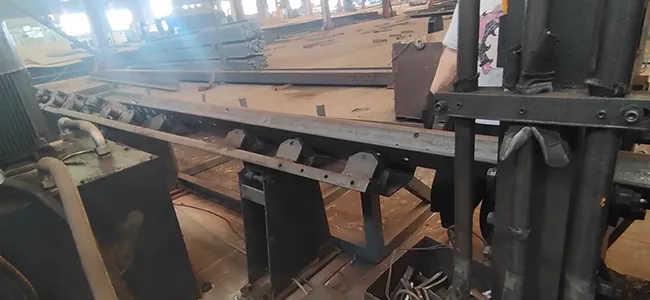

CNC Punching and Shearing
Steel angles are processed through CNC-controlled punching and shearing lines. Automatic feeding, positioning, punching, and cutting are all integrated into the process, keeping production running smoothly and efficiently. Precise CNC positioning keeps quality consistent, even when working with more complex parts.

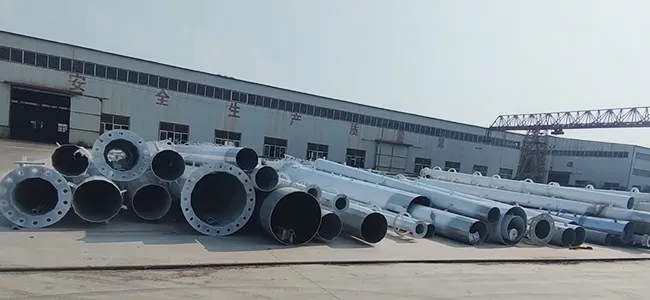

Hot-Dip Galvanizing and Surface Protection
The tower is protected with hot-dip galvanizing as the main anti-corrosion treatment, along with an extra plastic coating for added protection. The zinc layer protects the steel from rust and adds strength, while the coating gives extra insulation and surface protection. This combined treatment allows the tower to maintain reliable performance for over 20 years and adapt well to harsh environments such as high and low temperatures, coastal areas, and mountainous regions.
